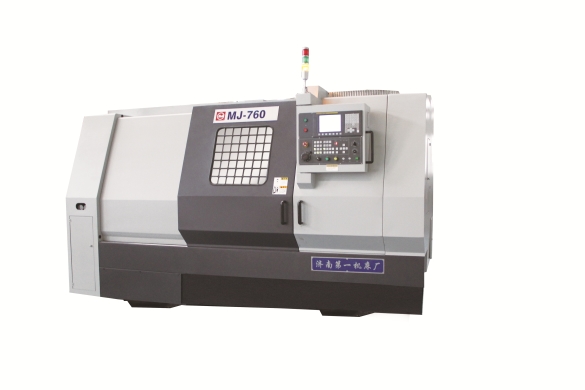

J1MJ-760 precision CNC lathe with slant bed
View:
Boxing way。High rigidity and precision。Slant-bed and large-size CNC turning center for heavy cutting。
J1MJ-760 Precision Slant Bed CNC Lathe Main Specifications Table (Standard Configuration)
|
項目Item |
J1MJ-630 |
J1MJ-760 |
|
床身上最大回轉直徑Max swing over bed |
φ630 |
φ760 |
|
滑板上最大回轉直徑Max swing over cross slide |
φ450 |
φ580 |
|
最大車削直徑Max turning Diameter |
φ520 |
φ650 |
|
主軸最高轉速(r/min)Max spindle speed |
25-2500 |
20-2000 |
|
主軸頭/主軸通孔直徑Spindle nose/spindle bore |
A2-8/φ105 |
A2-11/φ105 |
|
主軸電機功率(kW)Spindle motor power |
AC22/30 |
AC22/30 |
|
X/Z軸最大行程X/Z axis travel |
X:260;Z780/1500/2000 |
X:325;Z780/1500/2000/2500/300 |
|
X/Z軸快速移動速度(m/min)Rapid traverse rate of X/Z axis |
12/20 |
12/16 |
|
刀架形式/刀位數Turret type/Numbers of tool |
臥式液壓Horizontal, hydraulic clamp/un-clamp/12 |
|
|
數控系統CNC system |
FANUC 0i –TF |
|
