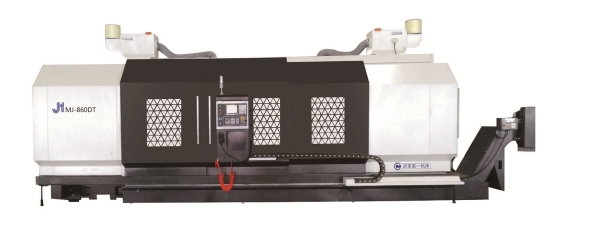

J1MJ-860DT×1500 Double knife CNC lathe
View:
Boxing way。High rigidity CNC lathe with double turret。
J1MJ-860DT×1500 Double Knife CNC Lathe Main Specifications Table (Standard Configuration)
項目Item |
J1MJ-860x1500 |
J1MJ-860DTx2500 |
最大工件回轉直徑Max. swing over bed |
Φ860 |
|
最大工件車削直徑Max. turning diameter |
Φ750 |
Φ700 |
最大工件車削長度 Max. turning length |
左Left 800/右Right 1500 |
|
主軸轉速范圍(r/min)Spindle speed range |
50-1000 |
|
主軸最大輸出扭矩(N.m)Max. output torque of spindle |
2200 |
1300 |
主軸電機功率Spindle motor power |
AC58/75 |
AC37/45 |
主軸通孔Diameter of spindle bore |
Φ105 |
|
卡盤規格Chuck size |
15″中實 |
|
刀架刀位數Tool No.s |
8+8 |
|
數控系統CNC system |
SIEMENS 828D |
FANUC 0i-TF |
